Seal Between Front Axle Differential Lock And Manual Transmission, Replacing On Front Axle Differential Lock: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove front axle differential lock. Refer to FRONT AXLE DIFFERENTIAL LOCK, REMOVING .
-- Secure the front axle differential lock to the engine and transmission holder. Refer to BEVEL BOX OR FRONT AXLE DIFFERENTIAL LOCK, SECURING TO ENGINE AND TRANSMISSION HOLDER .

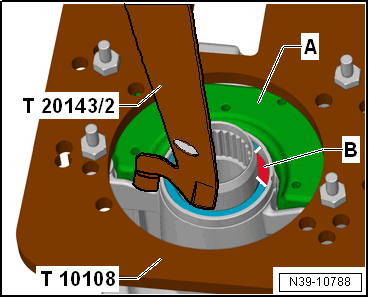

The Flange Shaft Does Not Need to Be Removed Contrary to the Illustration.
-- Pry out the seal.
- Do not damage the plastic container -A- and the support washer -B-.
The Support Washer -B- is Located Directly under the Seal.
