Overview - Transmission, Fwd

WARNING: This page is about a different variant/trim than selected.

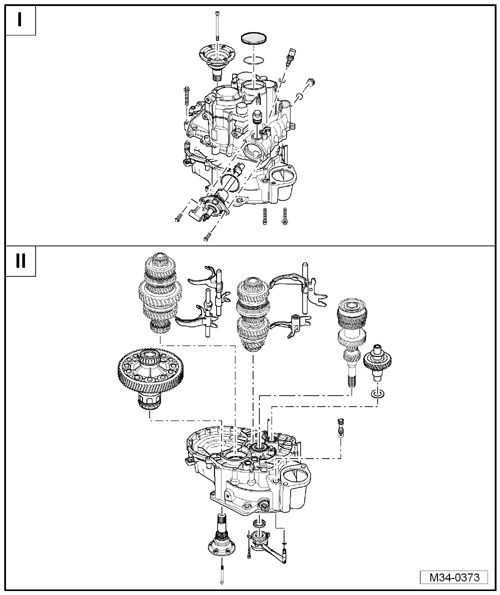

Fig 1: Exploded View Of Transmission (FWD) Components
GWWM34-0373Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. l -  Refer to OVERVIEW - TRANSMISSION HOUSING AND GEARSHIFT MECHANISM
  2. l -  Refer to OVERVIEW - SHIFT UNIT
  3. ll -  Refer to OVERVIEW - SHIFT FORKS
