Overview - Shift Forks

WARNING: This page is about a different variant/trim than selected.

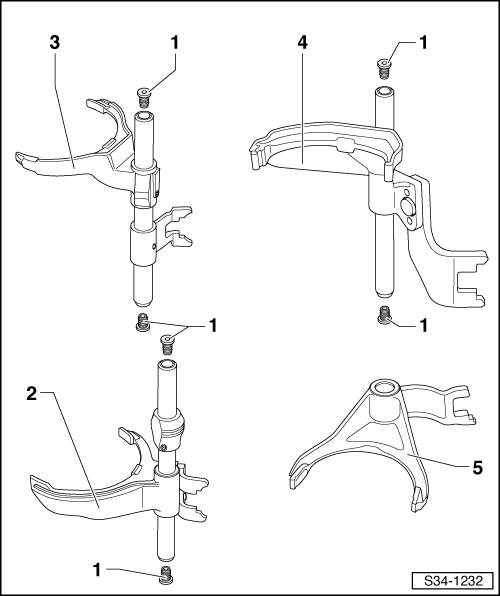

Fig 1: Exploded View Of Shift Forks
GWWS34-1232Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Rubber Damper
    • Remove from the gearshift rod by hand and install.
  2. Shift Rod with 1st and 2nd Gear Shift Fork
  3. Shift Rod with 3rd and 4th Gear Shift Fork
  4. Shift Rod with 5th and 6th Gear Shift Fork
  5. Reverse Gear Shift Fork
