Overview - Transmission, AWD And Transmission, Fwd With Front Axle Differential Lock

WARNING: This page is about a different variant/trim than selected.

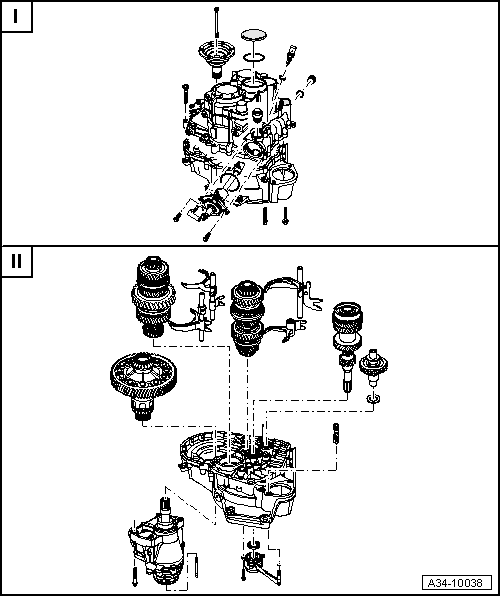

Fig 1: Exploded View Of Transmission AWD

GWWA34-10038

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

l - Refer to OVERVIEW - TRANSMISSION HOUSING AND GEARSHIFT MECHANISM
l - Refer to OVERVIEW - SHIFT UNIT
ll - Refer to OVERVIEW - SHAFTS, DIFFERENTIAL, GEARSHIFT RODS, AWD AND FWD WITH FRONT AXLE DIFFERENTIAL LOCK
ll - Refer to OVERVIEW - SHIFT FORKS
