Over-Center Spring, Removing And Installing: Installing

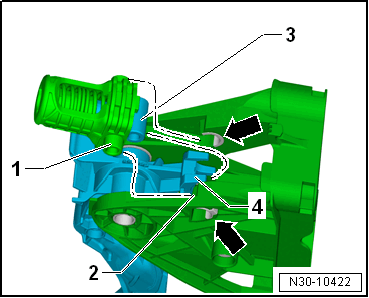

Fig 1: Identifying Clutch Pedal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in the reverse order of removal while noting the following:

• The bearing shells -arrows- for the pins -1- are installed.

-- Pull the clutch pedal into the passenger compartment (in direction of -arrow A- in the previous illustration).

-- Fit the pins -1- into the mounting bracket mounts -2-.

-- Fit the mounting -3- into the clutch pedal mount -4-.

• If the clutch pedal is pushed in the direction of -arrow B- (→ previous illustration), the over-center spring will fold in the direction of the mounting bracket.

-- Use a new mounting pin to connect the piston/clutch master cylinder to the clutch pedal.

-- If removed, install the bracket -arrow- with the Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-. Refer to the appropriate service information .

Fig 2: Locating Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the crash bolster -1- and tighten the bolt -2-. Refer to OVERVIEW - INSTRUMENT PANEL CROSSMEMBER .

Fig 3: Identifying Bolt & Crash Bolster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the Data Bus on Board Diagnostic Interface -J533-. Refer to COMPONENT LOCATION OVERVIEW - CONTROL MODULES .

-- Install the driver side footwell vent. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN VEHICLE INTERIOR .

Vehicles with Knee Airbag

-- Install the driver knee airbag. Refer to the appropriate service information .

Vehicles without Knee Airbag

-- Connect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .
