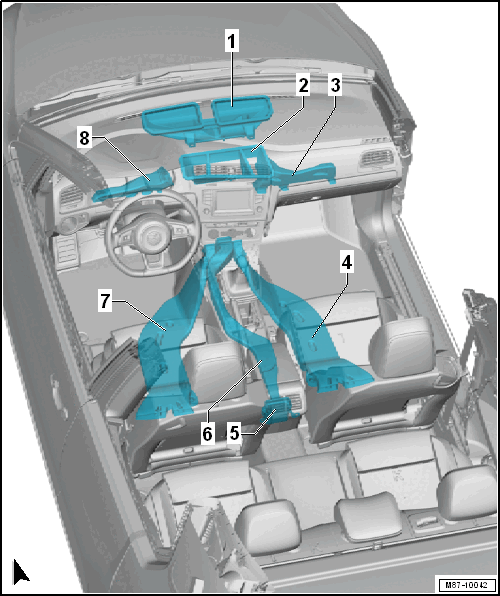

Overview - Air Routing And Air Distribution In Vehicle Interior

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Air Routing
   • For defrost air vent
   • Removing and Installing. Refer to AIR DUCT FOR DEFROST AIR VENT, REMOVING AND INSTALLING .
2. Air Routing
   • For center vent
   • Removing and Installing. Refer to CENTER INSTRUMENT PANEL VENT AIR DUCT, REMOVING AND INSTALLING .
3. Footwell Vent
   • Passenger side
   • Removing and Installing. Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
4. Air Duct
   • Right Rear Footwell Vent
   • Removing and Installing. Refer to REAR FOOTWELL VENT, REMOVING AND INSTALLING .
5. Air Duct
   • In the rear center console
   • Depending on vehicle equipment installed, on vehicles without a rear center console vent air duct a heater cap is installed.
   • Removing and Installing. Refer to AIR DUCTS, REMOVING AND INSTALLING .
6. Air Duct
   • Rear center console rear vent
   • Depending on vehicle equipment installed, on vehicles without a rear center console vent air duct a heater cap is installed.
   • Removing and Installing. Refer to AIR DUCTS, REMOVING AND INSTALLING .
7. Air Duct
   • Left Rear Footwell Vent
   • Removing and Installing. Refer to REAR FOOTWELL VENT, REMOVING AND INSTALLING .
8. Footwell Vent
   • Driver side
   • Removing and Installing. Refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
