Radiator, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the radiator grille. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING .

-- Remove the fan shroud and fans. Refer to FAN SHROUD, REMOVING AND INSTALLING .

-- Disconnect all coolant hoses from the radiator.

-- Push to the left and right air ducts -1- to the side.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

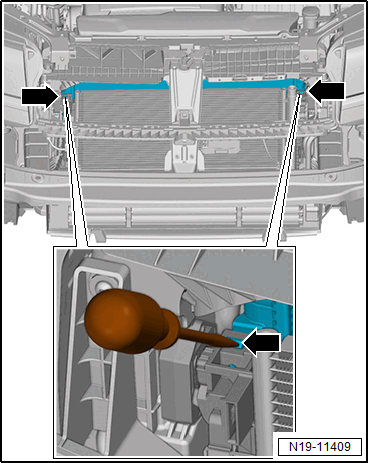

-- Push the locking latches -arrows- for the radiator downward. Pull the radiator off of the charge air cooler.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pivot the radiator to the engine and lift upward from the charge air cooler bracket. Remove the radiator downward.
