Rear Underbody Trim Panel, Removing And Installing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench 1783 - 2-10Nm:V.A.G 1783

Fig 1: Identifying Torque Wrench
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Depending on the engine version, slight deviations must be considered when removing and installing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

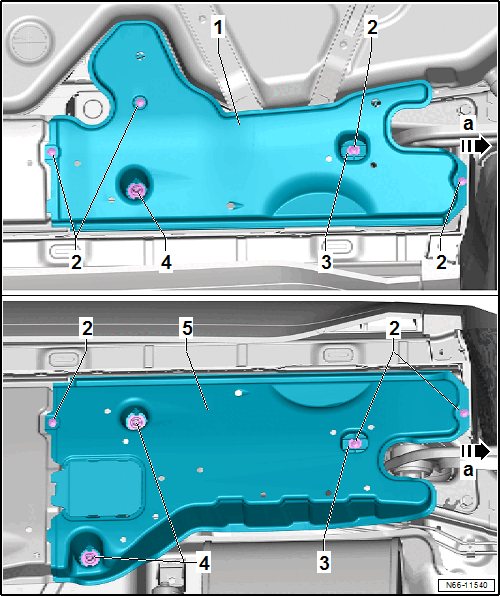

-- Remove the nuts -4- and bolts -2-.

-- Remove the expanding nut -3-.

-- Pull the rear underbody trim panel -1 or 5- toward the rear in direction of -arrow a- out of the underbody trim panel.

Installing

Install in reverse order of removal.

Tightening Specifications

Refer to COMPONENT LOCATION OVERVIEW - UNDERBODY TRIM PANELS
