Component Location Overview - Underbody Trim Panels

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

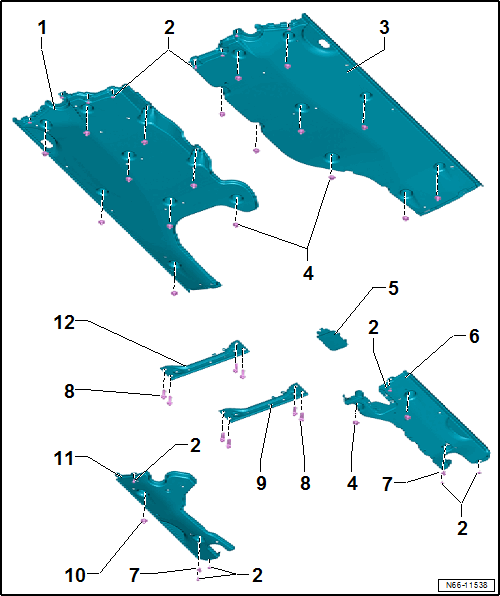

Fig 1: Exploded View Of Underbody Trim Panels

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Front Underbody Trim Panel
- Left and right
- Removing and Installing. Refer to UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
Bolt
- 2 Nm.
Left Front Underbody Trim Panel
- Left and right
- Removing and Installing. Refer to UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
Nut
- 2.0 Nm
- With fastener
Cover
- Engaged in the rear underbody trim panel
Left Rear Underbody Trim Panel
- Removing and Installing. Refer to REAR UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
Expanding Rivet
Bolt
- 20 Nm
- Quantity: 2 on each side
Rear Tunnel Brace
- Removing and Installing. Refer to TUNNEL BRACE, REMOVING AND INSTALLING .
Nut
- 2.0 Nm
- With fastener
Right Rear Underbody Trim Panel
- Removing and Installing. Refer to REAR UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
Front Tunnel Brace
- Only on FWD
- Removing and Installing. Refer to TUNNEL BRACE, REMOVING AND INSTALLING .
