Overview - Converter With Socket, 12 V-115 V

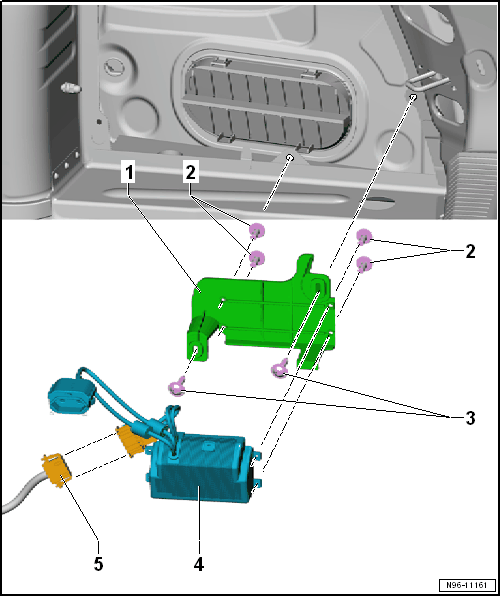

Fig 1: Exploded View Of Converter With Socket, 12 V-230 V

Courtesy of AUDI OF AMERICA, LLC

1. Bracket
   • For mounting the Converter with Socket, 12 V-115 V -U27-
   • Removing and installing. Refer to Converter with Socket, 12 V-115 V -U27-, REMOVING AND INSTALLING .
2. Bolt
   • 2 Nm
   • For mounting the Converter with Socket, 12 V-115 V -U27- on the bracket
   • Quantity: 4
3. Bolt
   • 9 Nm
   • To secure the bracket in the side panel
   • Quantity: 2
4. Converter with Socket, 12 V-115 V -U27-
   • Must not be opened.
   • No repairs to the connector, to the wires and to the 115 V socket
   • Removing and installing. Refer to Converter with Socket, 12 V-115 V -U27-, REMOVING AND INSTALLING .
5. Connector
   • 12-V input voltage
