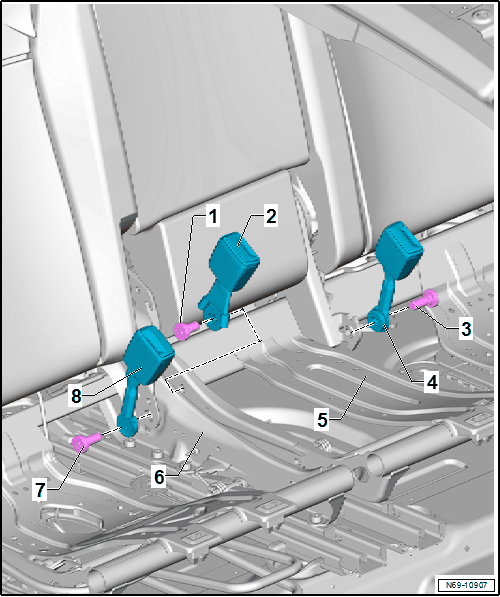

Overview - Rear Seat Belt Latch, Second Row
- Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Center Seat Belt Latch
- With Center Rear Seat Belt Switch -E609-
- Removing and Installing. Refer to CENTER REAR SEAT BELT LATCH, REMOVING AND INSTALLING, SECOND ROW .
- Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Outer Seat Belt Latch
- With Driver Side Rear Seat Belt Switch -E258-
- Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, OUTER SECOND ROW .
- 2/3 Bench Seat
- Overview. Refer to OVERVIEW - BENCH SEAT .
- Removing and Installing. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .
- 1/3 Seat
- Overview. Refer to OVERVIEW - SINGLE SEAT .
- Removing and Installing. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .
- Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Outer Seat Belt Latch
- With Passenger Side Rear Seat Belt Switch -E259-
- Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, OUTER SECOND ROW .
