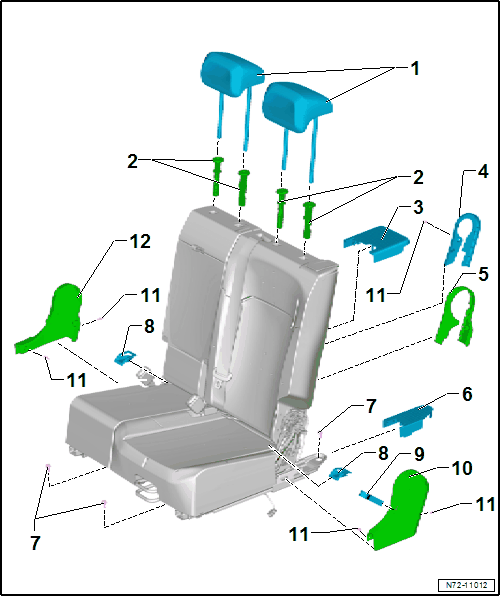

Overview - Bench Seat
- Headrest
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING .
- Headrest Guide
- Replace if damaged
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
- Seat Rail Cover
- Remove upward
- Cap
- For center fitting
- Cap
- For center fitting
- Seat Rail Cover
- Remove upward
- Bolt
- 40 Nm
- Quantity: 4
- LATCH Child Seat Anchor Guide
- Quantity: 2
- Removing and Installing. Refer to LATCH CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING .
- Pull Loop
- Sill-Side Cover
- Remove the expanding rivet
- Remove sideways
- Expanding Rivet
- Tunnel-Side Cover
- Remove the expanding rivet
- Remove sideways
