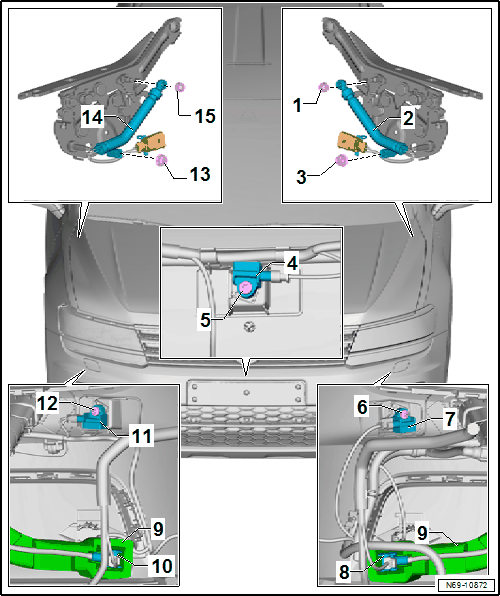

Overview - Pedestrian Protection
- Clip
- Pedestrian Protection Trigger 1 -G598-
- Reset the deployed pedestrian protection. Refer to OVERVIEW - HOOD .
- Removing and Installing. Refer to Pedestrian Protection Trigger 1 -G598- /Pedestrian Protection Trigger 2 -G599-, REMOVING AND INSTALLING .
- Nut
- 8 Nm
- Pedestrian Protection Center Crash Sensor -G693-
- Installation location: on the bumper cover
- Removing and Installing. Refer to Pedestrian Protection Center Crash Sensor -G693-, REMOVING AND INSTALLING .
- Must be replaced when
- Molded foam part visibly damaged
- The impact member is visibly deformed.
- The bumper cover is deformed.
- Bolt
- 6 Nm
- Bolt
- 6 Nm
- Driver Side Pedestrian Protection Crash Sensor 2 -G851-
- Installation location: on the bumper cover
- Removing and Installing. Refer to Driver Side Pedestrian Protection Crash Sensor 2 -G851- /Front Passenger Side Pedestrian Protection Crash Sensor 2 -G852-, REMOVING AND INSTALLING .
- Must be replaced when
- Foam visibly damaged
- The impact member is visibly deformed.
- The bumper cover is deformed.
- Driver Side Pressure Sensor
- Component of Pressure Hose Sensor for Front Pedestrian Protection -G579-
- Pressure Hose Sensor for Front Pedestrian Protection -G579-
- Clipped into the foam piece
- Removing and Installing. Refer to Pressure Hose Sensor for Front Pedestrian Protection -G579-, REMOVING AND INSTALLING .
- Front Passenger Side Pressure Sensor
- Component of Pressure Hose Sensor for Front Pedestrian Protection -G579-
- Front Passenger Side Pedestrian Protection Crash Sensor 2 -G852-
- Installation location: on the bumper cover
- Removing and Installing. Refer to Pedestrian Protection Center Crash Sensor -G693-, REMOVING AND INSTALLING .
- Must be replaced when
- Foam visibly damaged
- The impact member is visibly deformed.
- The bumper cover is deformed.
- Bolt
- 6 Nm
- Nut
- 8 Nm
- Pedestrian Protection Trigger 2 -G599-
- Reset the deployed pedestrian protection. Refer to OVERVIEW - HOOD .
- Removing and Installing. Refer to Pedestrian Protection Trigger 1 -G598- /Pedestrian Protection Trigger 2 -G599-, REMOVING AND INSTALLING .
- Clip
