Calibration, Performing

Special tools and workshop equipment required

• Calibration Tool: VAS6350
• Calibration Tool - Lane Change Calibration Tool: VAS6350/4

The following should not occur during the calibration procedure  :

• Vehicle doors must not be opened or closed.
• People must not sit in the vehicle.
• People must not go between the vehicle and the : VAS6350/4  for the lane change assistance.

Procedure

-- Perform the preparation work. Refer to CALIBRATION PREPARATION WORK .

-- Turn on the : VAS6350/4  for the lane change assistance on the voltage switch -3-.

• The green LED -1- must turn on.

-- Connect the Vehicle Diagnostic Tester.

-- Select calibration in the "Guided Fault Finding  " mode.

-- Follow the instructions in the display Vehicle Diagnostic Tester.

During the course of the program, a request is made to switch the : VAS6350/4  for the lane change assistance from the left to the right side of the : VAS6350  .

-- Switch of the : VAS6350/4  for the lane change assistance and remove the : VAS6350  .

• When installed correctly, vehicle electrical system voltage line must be connected at bottom left of : VAS6350/4  for the lane change assistance (as seen in direction of travel).

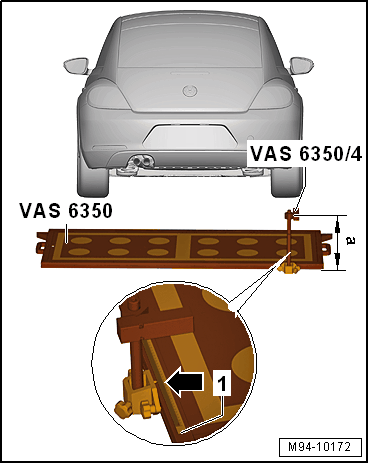

• Dimension -a- = 632 mm (measured from upper edge of : VAS6350  to the floor).
• Right setting = 705 mm (read on measurement scale -1-).

-- Turn on the : VAS6350/4  for the lane change assistance on the voltage switch -3-.

• The green LED -1- must turn on.

-- Follow the instructions in the display. Refer to Vehicle Diagnostic Tester.
