Calibration Preparation Work

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Calibration Unit: VAS6350A
Calibration Tool - Wheel Center Mountings: VAS6350/1
Calibration Tool - Spacing Laser: VAS6350/2
Calibration Tool - Linear Laser: VAS6350/3A
Vehicle Diagnostic Tester

Requirements

Move the vehicle onto a secure flat surface.
Apply the parking brake - the vehicle must not move during the measurement.
Place the front wheels in a straight-ahead position, steering wheel in 0 position.
No persons may be in the vehicle interior during the measurement.
Do not open and close the vehicle doors during calibration.

Procedure

-- Connect the Vehicle Diagnostic Tester.

-- Turn on the ignition.

-- Secure three suitable wheel bolt adapters for the wheel bolts on each : VAS6350/1 .

Fig 1: Identifying Wheel Pick-Ups On Wheel Mounting Bolts At Rear Wheels

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the measuring paddle on both : VAS6350/1 and secure them using a clamping screw.

-- Place the : VAS6350/1 onto the wheel bolts on both rear wheels.

: VAS6350/1 must be in wheel rotation center.

NOTE:

Attach the : VAS6350/1 onto the wheels so that any installed "anti-theft wheel bolts" are not connected to the : VAS6350/1 .

-- Adjust the measuring paddle with aid of lock bolts so that they move freely just above the floor. Check the paddles for ease of movement.

The measuring paddles must move easily.
The measuring paddles must be vertical.

-- Position the : VAS6350A at distance -a- to the rear wheels.

Fig 2: Determining Distance Between Calibration Device VAS 6350 And Rear Wheels

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Dimension -a- = 1700 ± 2 mm

-- Switch on the : VAS6350/2 .

The Following Display Appears:

Fig 3: Identifying Display Showing How To Stop Calibration Tool

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The display shows how to stop the : VAS6350/2 . Press the corresponding button.

Fig 4: Identifying Front Edge And Rear Edge

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Attach with Front Edge
Attach with Rear Edge

-- Hold the : VAS6350/2 -2- flush in the bracket on one side of the calibration board (attach with rear edge). The : VAS6350/2 -2- must sit securely on the bracket.

Fig 5: Ensuring Laser Beam From Distance Laser VAS 6350/2 Hits Lower, Enlarged Part Of Paddle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the measuring button briefly.

The laser switches on.

-- Make sure that laser beam from : VAS6350/2 -2- hits lower, enlarged part of the measuring paddle -1-.

If this is not the case, correct the measuring paddles accordingly via clamping screws on the : VAS6350/1 .

-- Use one hand to secure the : VAS6350/2 in the bracket on the : VAS6350 while the laser beam is visible on the paddle.

-- Then press the measurement button for the distance measurement briefly.

-- Write down the value.

"1, 700 m" (specified value: 1700 ± 2 mm).

-- Repeat this measurement on the other side of the : VAS6350 in the same way for the rear wheel.

The distance value must be the same on both sides.

If values are not identical:

-- Align the : VAS6350A long enough so that both sides are identical.

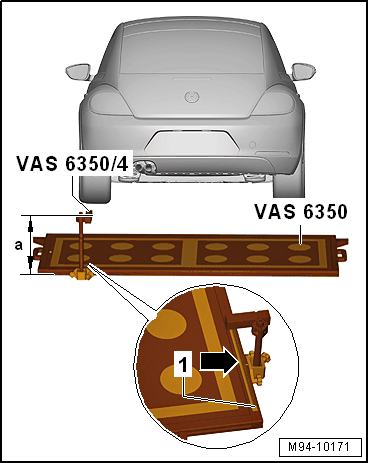

-- Secure the : VAS6350/4 for the lane change assistance to the : VAS6350 mount.

Fig 6: Identifying Calibration Tool - Lane Change Calibration Tool

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

When installed correctly, vehicle electrical system voltage line must be connected at bottom left of : VAS6350 (as seen in direction of travel).
Dimension -a- = 632 mm (measured from upper edge of : VAS6350 to workshop floor).

-- The adjustment dimension is set with the measuring point -arrow- on the base of the : VAS6350 on the scale of the steel ruler -1-.

Left setting = 705 mm (read on measurement scale -1-).

-- Connect the calibration unit for : VAS6350/4 for the lane change assistance to the vehicle electrical system voltage.

-- Bring the : VAS6350A into a horizontal position.

-- To do so, twist plastic feet under calibration device so that air bubble in level is located exactly in the center of the indicator -arrow-.

Fig 7: Identifying Bubble Level (Sight Glass) On Calibration Tool VAS 6350

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Wear "laser protective eyewear".

Fig 8: Identifying Bubble Level (Sight Glass) On Calibration Tool VAS 6350

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

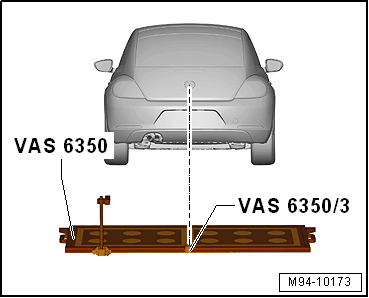

-- Turn on the : VAS6350/3A on the : VAS6350A .

-- Align the entire : VAS6350A so that the laser beam shines on the center of the vehicle rear above the VW logo.

-- Check right and left distance between catch bracket on the : VAS6350A and measuring paddle -1- on wheel mountings again.

Fig 9: Ensuring Laser Beam From Distance Laser VAS 6350/2 Hits Lower, Enlarged Part Of Paddle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Specified value: 1700 ± 2 mm

Calibrate the Blind Spot Detection Control Module -J1086- /Blind Spot Detection Control Module 2 -J1087-. Refer to CALIBRATION, PERFORMING .
