Access/Start System Antenna in Luggage Compartment -R137-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the convertible top compartment rear trim panel. Refer to OVERVIEW - CONVERTIBLE TOP COMPARTMENT .

-- Remove the Access/Start System Antenna in Luggage Compartment -R137- -1- upward out of the grille in direction of -arrow- with a small screwdriver.

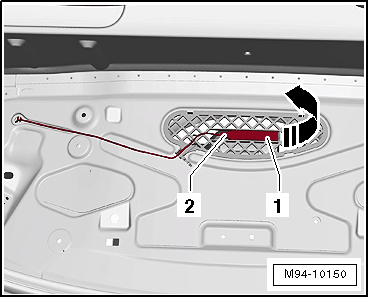

Fig 1: Identifying Connector And Access/Start System Antenna

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2- and remove the Access/Start System Antenna in Luggage Compartment -R137- -1- from the vehicle.
