Overview - Convertible Top Compartment

WARNING: This page is about a different variant/trim than selected.

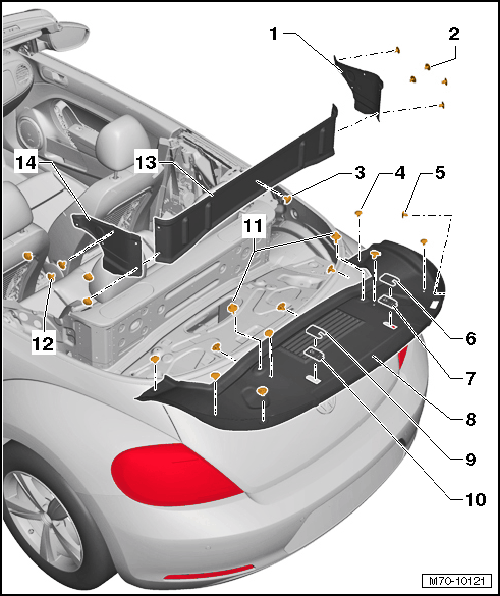

Fig 1: Identifying Convertible Top Compartment Components Overview
GWWM70-10121Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Convertible Top Compartment Side Trim
    • For the right side
  2. Clip
    • Quantity: 4
  3. Clip
  4. Clip
    • Quantity: 6
  5. Clip
    • Quantity: 5
  6. Cap
  7. Bracket
    • For the convertible top right tensioning strap
  8. Convertible Top Compartment Rear Trim Panel
  9. Cap
  10. Bracket
    • For the convertible top left tensioning strap
  11. Rubber Grommet
    • Quantity: 2
  12. Clip
    • Quantity: 4
  13. Convertible Top Compartment Front Trim Panel
  14. Convertible Top Compartment Side Trim
    • For the left side
