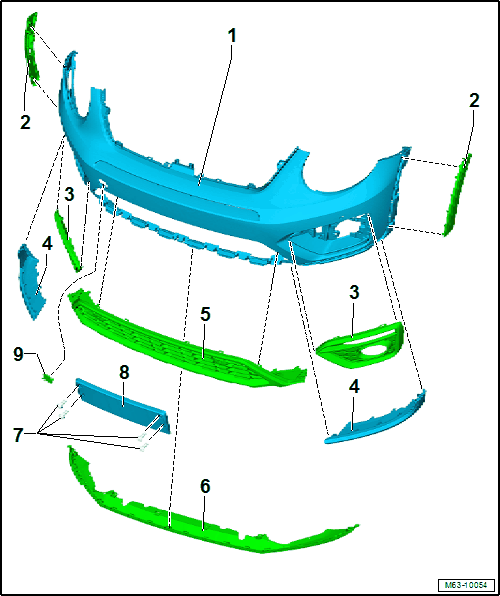

Overview - Attachments, Dune
WARNING: This page is about a different variant/trim than selected.
NOTE:
Depending on the model version, slight deviations for attachments must be considered.
- Front Bumper Cover
- PP/EPDM material
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Trim
- Extension of left and right wheel housing trim
- Locked in the bumper cover -1-.
- Remove only when bumper cover -1- has been removed.
- Side Air Grille
- Left and right
- Pull forward out of the retainer
- There are different versions. Refer to the Parts Information for the allocation.
- Outer Front Spoiler
- Left and right
- Remove only when bumper cover -1- has been removed
- Air Grille
- Remove only when bumper cover -1- has been removed
- There are different versions. Refer to the Parts Information for the allocation.
- Front Spoiler
- Remove only when bumper cover -1- has been removed
- There are different versions. Refer to the Parts Information for the allocation.
- Expanding Rivet
- For attaching the license plate holder
- Quantity: 4
- License Plate Holder
- Not installed on all models and not in all markets.
- There are different versions. Refer to the Parts Information for the allocation.
- Front License Plate Holder, Installing. Refer to Front License Plate Holder, Installing .
- Towing Eye Cover
