Front License Plate Holder, Installing

WARNING: This page is about a different variant/trim than selected.

NOTE:

The license plate holder is not installed on all models and in all markets.

The license plate holder can have different sizes depending on the market.

The contour of the bumper determines the height of the license plate holder.

Drill 12 mm holes.

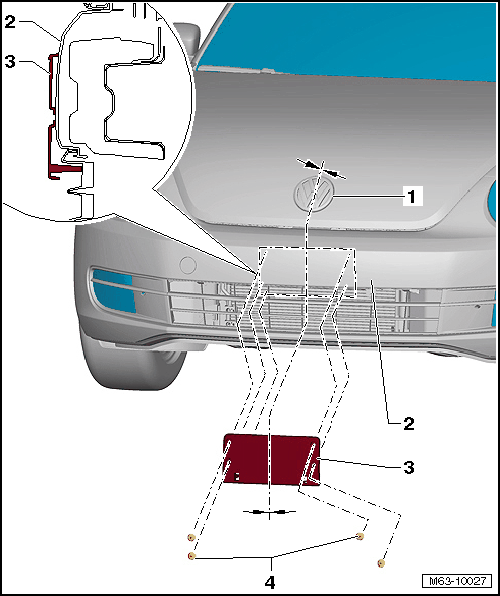

Fig 1: Identifying Emblem, Front Bumper Cover, License Plate Holder And Clips

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

With Holes Present

-- Position the license plate holder -3- on the front bumper cover -2- and push the clips -4- in.

With No Holes Present

-- Center the license plate holder -3- on the front bumper cover -2- with the emblem -1-.

-- Set the drill stop depth to 12 mm and drill the holes.

-- Position the license plate holder -3- on the front bumper cover -2- and push the clips -4- in.
