Passenger Occupant Detection System, Removing And Installing, Passenger Occupant Detection System Control Module: Removing

WARNING: This page is about a different variant/trim than selected.

-- Attach the Engine/Transmission Holder - Seat Repair Fixture:VAS6136 on the Engine and Gearbox Bracket:VAS6095A .

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Secure the seat on the Engine/Transmission Holder - Seat Repair Fixture:VAS6136 .

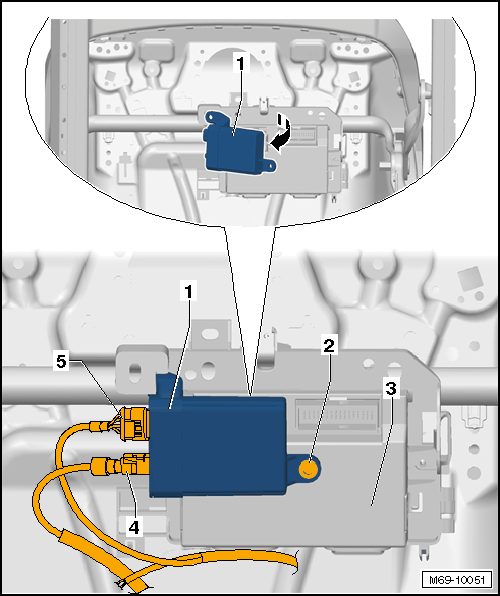

Fig 1: Identifying Passenger Occupant Detection System Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connectors -4 and 5- from the Passenger Occupant Detection System Control Module -J706- -1-. Refer to Disconnecting the Connectors .

-- Remove the bolt -2-.

-- Remove the Passenger Occupant Detection System Control Module -J706- -1- from the bracket -3- in direction of -arrow-.
