Front Emblems, Removing And Installing: Installing

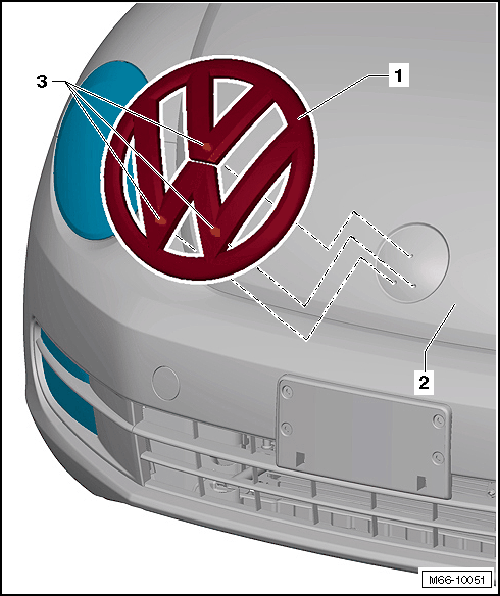

Fig 1: Identifying Front Emblem

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Follow the assembly instructions. Refer to ASSEMBLY INSTRUCTIONS FOR BONDING NAME BADGES .

-- Peel off the backing from the brand emblem -1-.

-- Align the emblem -1- with the centering pins -3- with the indentations in the hood -2- and install it.

-- Press the emblem firmly onto the hood.
