"R-Line" NAME BADGE

WARNING: This page is about a different variant/trim than selected.

Follow the assembly instructions. Refer to ASSEMBLY INSTRUCTIONS FOR BONDING NAME BADGES .

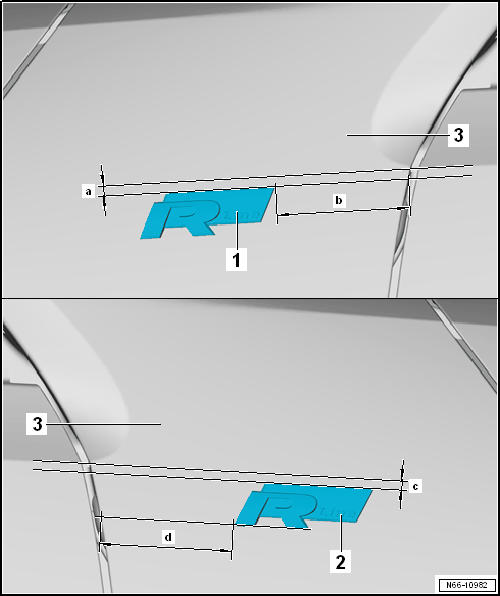

Fig 1: "R-Line" Name Badge
GWWN66-10982Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Name Badge Dimensions on the Left Fender
    • Dimension -a- = 9.0 mm
    • Dimension -b- = 54.0 mm
  2. Name Badge Dimensions on the Right Fender
    • Dimension -c- = 9.0 mm
    • Dimension -d- = 54.0 mm
  3. Fender
