Dimensions - Rear Name Badges And Emblems

NOTE:

There are different name badges depending on the market. The dimensions illustrated apply to all name badges.

The distance -dimension a- between the name badge and the emblem is different on the Sedan and Convertible.

Follow the assembly instructions. Refer to ASSEMBLY INSTRUCTIONS FOR BONDING NAME BADGES .

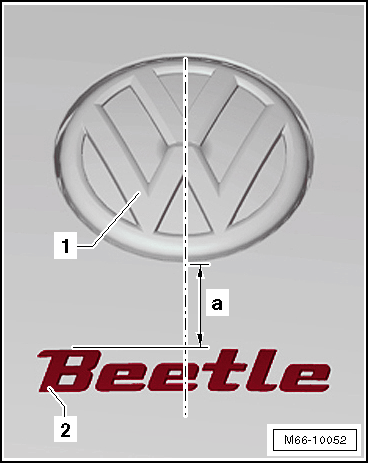

Fig 1: Dimensions - Rear Lid Name Badges And Emblems

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Mechanism with Emblem
2. Name Badge

For Sedan Only

Dimension -a- = 46 mm, from the bottom edge of the emblem to the upper edge of the name badge

For Convertible Only

Dimension -a- = 49 mm, from the bottom edge of the emblem to the upper edge of the name badge

The name badge -2- is centered with the emblem -1- on the rear lid.
