Sill Panel Trim, Removing And Installing: Notes

WARNING: This page is about a different variant/trim than selected.
NOTE:

The assembly procedure describes the left sill panel trim. The procedure for the right sill panel trim is the same.

Fig 1: Sill Panel

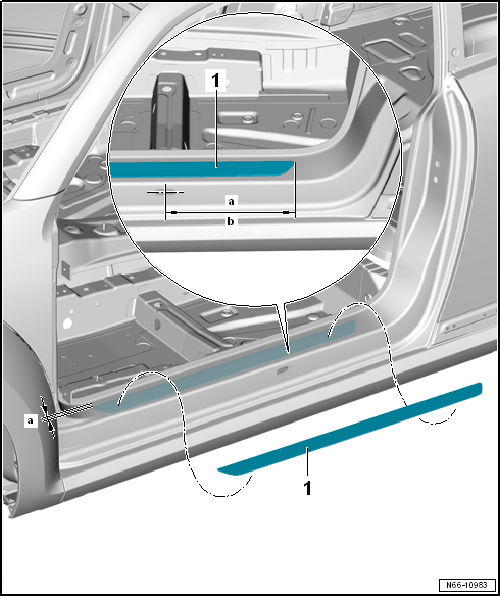

GWWN66-10983Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Sill Panel Trim

    For Sedan only

    • Dimension -a- = 285.5 mm

      For Convertible only

    • Dimension -b- = 307 mm
    • Assembly instructions. Refer to Assembly Instructions .
Fig 2: Sill Panel

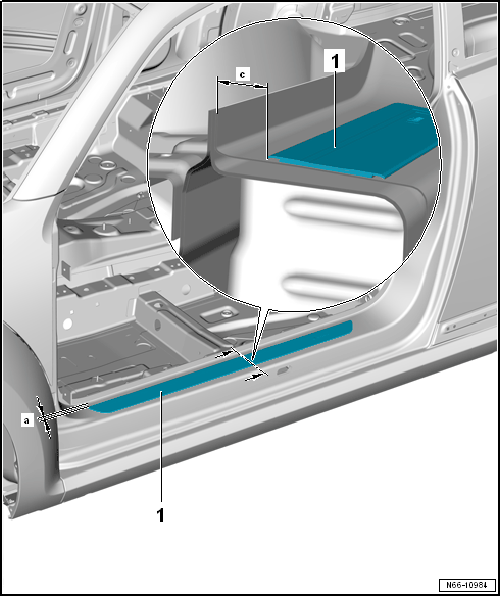

GWWN66-10984Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Sill Panel Trim

    For Sedan and Convertible
