Overview - Side Sill Trim Panel

WARNING: This page is about a different variant/trim than selected.

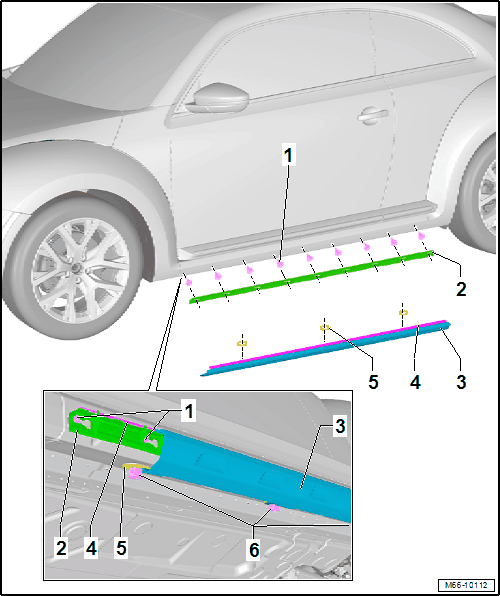

Fig 1: Exploded View Of Side Sill Trim Panel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Self-Drilling Screw
- 1.2 Nm
- Secures retaining strip to side sill
- Quantity: 9 on each side
- Dimensions table. Refer to Dimensions Table .
Rocker Panel Extension Retaining Strip
- Removing and Installing. Refer to ROCKER PANEL EXTENSION RETAINING STRIP, REMOVING AND INSTALLING .
Side Sill Trim Panel
- Removing and Installing. Refer to SIDE SILL TRIM PANEL, REMOVING AND INSTALLING .
Two-Sided Adhesive Tape
Seals
- For expanding clip
- Quantity: 3
Expanding Clip
- Pressed onto the side sill
- Quantity: 3
