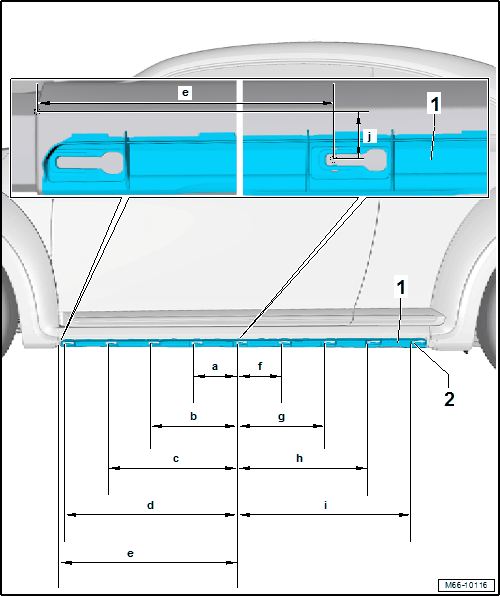

Dimensions Table
| Dimension -a- | = 172 mm |
| Dimension -b- | = 340 mm |
| Dimension -c- | = 515 mm |
| Dimension -d- | = 687 mm |
| Dimension -e- | = 710 mm |
| Dimension -f- | = 172 mm |
| Dimension -g- | = 340 mm |
| Dimension -h- | = 515 mm |
| Dimension -i- | = 687 mm |
| Dimension -j- | = 33 mm |
The dimension -e- is measured at the front side sill edge -illustration-.
The dimension -e- corresponds to the center drill hole.
The reference points for the drill holes -j- are measured from the center of the side sill upper edge rounded section -illustration-.
For reasons of clarity, the retaining strip -1- is also shown.
-- Punch the holes for the screws.
-- Pre-drill the holes with a 1.5 mm drill bit.
-- Install the self-tapping screws -2- using the :VAS5036 at the highest RPM until the thread engages.
-- Now set the :VAS5036 aside.
-- Tighten the screws -2- to the lowest tightening specification.
Continuation of Installation

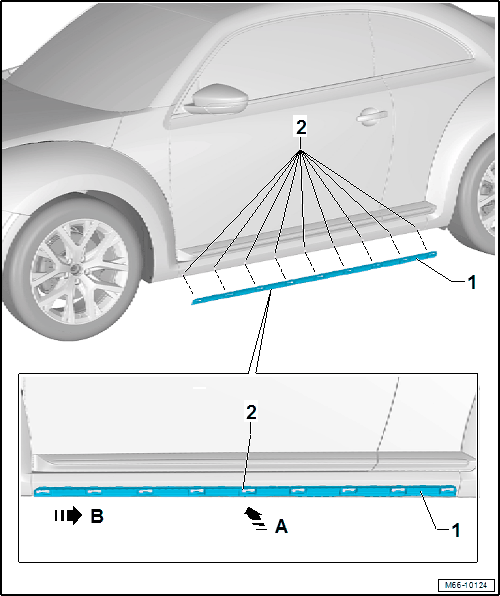

-- Position the retaining strip -1- evenly in direction of -A arrow- with the openings over all of the screws -2- until the retaining strip touches the side sill.
Position the retaining strip -1- with a second technician so that all screws remain in the openings when sliding it on.
-- Push the retaining strip -1- toward the rear until it stops in direction of -B arrow-.
