Transmission Input Speed Sensor -G182-, REMOVING AND INSTALLING: Procedure

WARNING: This page is about a different variant/trim than selected.

-- Drain the ATF. Refer to ATF, DRAINING AND FILLING .

-- Remove the valve body. Refer to VALVE BODY, REMOVING AND INSTALLING .

-- Remove the bolt -1- from the Transmission Input Speed Sensor -G182-.

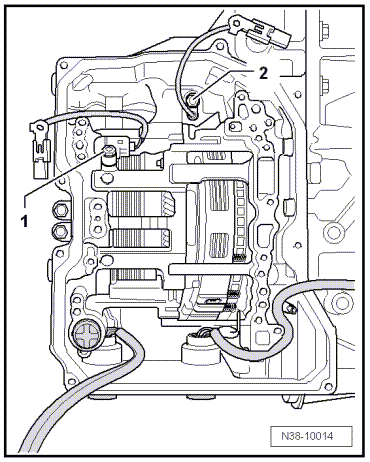

Fig 1: Identifying Transmission Input G182 & Output G195 Speed (RPM) Sensors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Transmission Input Speed Sensor -G182- from the transmission housing.

Install in the reverse order of removal while noting the following:

-- Push the Transmission Input Speed Sensor -G182- all the way into the transmission housing.

-- Tighten the bolt -1- for the Transmission Input Speed Sensor -G182-. Refer to Tightening Specifications .

-- Install the valve body. Refer to VALVE BODY, REMOVING AND INSTALLING .

-- Fill the ATF, and check the ATF level and add ATF if necessary. Refer to ATF .

Tightening Specifications
