Front Fender
WARNING: This page is about a different variant/trim than selected.
NOTE:

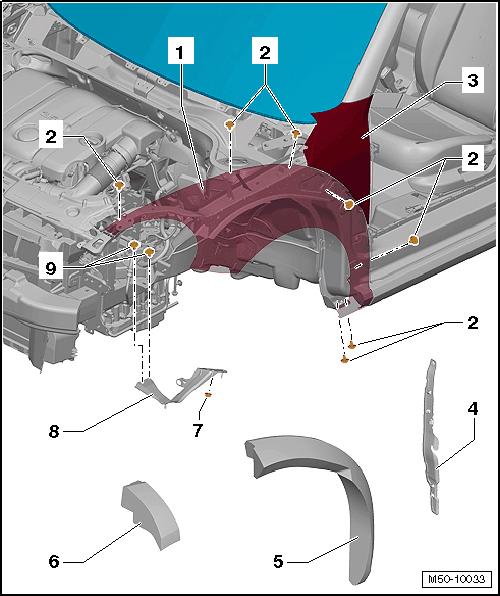

The illustration shows the left side. The right side is identical.
- Front Fender
- Removing and Installing. Refer to FENDER, REMOVING AND INSTALLING .
- Bolt
- 6 Nm
- A-pillar, quantity: 1
- Wheel housing, quantity: 1
- Quantity: 2, side sill
- Fender connecting piece, quantity: 3
- Front Upper Fender
- Overview. Refer to Front Upper Fender .
- Removing and Installing. Refer to FENDER, REMOVING AND INSTALLING .
- Front Fender End Plate
- Removing and Installing. Refer to Front Fender End Plate .
- Brace Noise Insulation
- Inserted between the front fender and the upper A-pillar longitudinal member. Refer to Noise Insulation, Fender and Brace
- Not installed in all model versions
- Front Fender Noise Insulation
- Inserted between the front fender and the wheel housing longitudinal member. Refer to Noise Insulation, Fender and Brace
- Not installed in all model versions
- Nut
- 6 Nm
- Fender brace, quantity: 1
- Fender Brace
- Removing and Installing. Refer to FENDER BRACE, REMOVING AND INSTALLING .
- Bolt
- 6 Nm
- Quantity: 2
