Noise Insulation, Fender & Brace

WARNING: This page is about a different variant/trim than selected.
NOTE:

The illustration shows the left side. The right side is identical.

There may be different noise insulation and foam pieces installed.

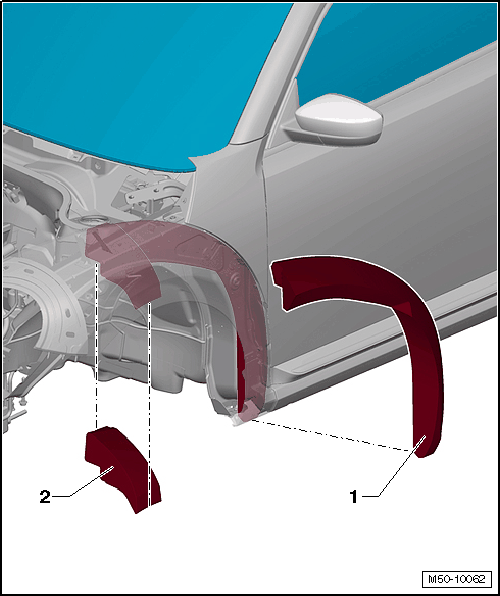

Fig 1: Identifying Brace Noise Insulation And Front Fender Noise Insulation
GWWM50-10062Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Brace Noise Insulation
    • Inserted between the front fender and the upper A-pillar longitudinal member
    • Not installed in all model versions
  2. Front Fender Noise Insulation
    • Inserted between the front fender and the upper wheel housing longitudinal member
    • Not installed in all model versions
