Fender Brace, Removing And Installing: Installing

-- Install the fender brace -2-.

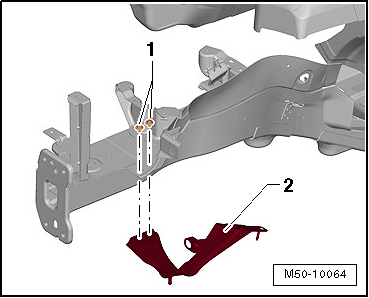

Fig 1: Identifying Fender Brace

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the nut that attaches the front fender to the fender brace -2-. Refer to OVERVIEW - FENDER .

-- Install the headlamp carrier plate bolt on the fender brace -2-.

-- Install the guide profile to the front bumper cover. Refer to OVERVIEW - GUIDES AND BRACKETS .

-- Install the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- The fender brace is aligned with the fender to the hood and bumper. Refer to Body Gap Dimensions; Body Front .

Tightening Specifications
