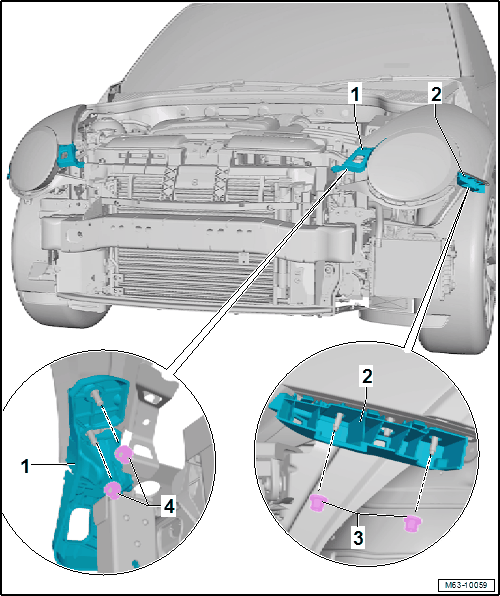

Overview - Guides And Brackets
WARNING: This page is about a different variant/trim than selected.
- Bracket
- Left and right
- Removing and Installing. Refer to Bracket, Removing and Installing .
- Side Guide
- Left and right
- Nut
- 3 Nm
- For attaching side guide -2-
- Quantity: 2 on each side
- Nut
- 3 Nm
- Quantity: 2 on each side
- For attaching the bracket -1-
