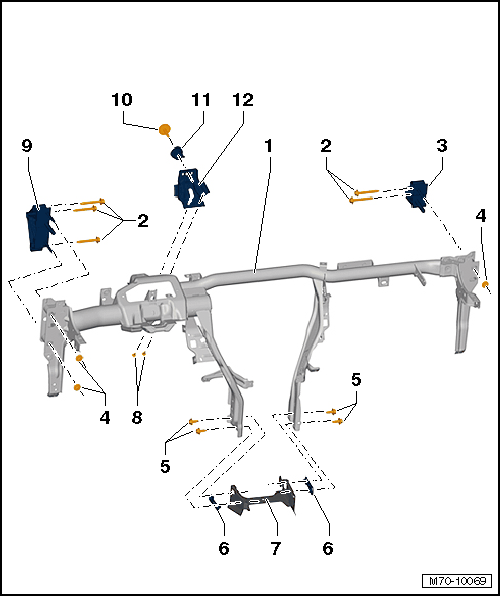

Overview - Instrument Panel CROSSMEMBER
WARNING: This page is about a different variant/trim than selected.
NOTE:
It may be helpful to make drawings or take photos of any wires that are going to be loosened, removed and then installed. This assures the wires will be reconnected correctly.
- Instrument Panel Central Tube
- Removing and Installing. Refer to INSTRUMENT PANEL CROSSMEMBER, REMOVING AND INSTALLING .
- Bolt
- 20 Nm
- Quantity: 2
- Instrument panel central tube bolt to center tunnel
- Bracket with Eccentric
- Instrument panel central tube bracket on the front passenger side; bolted to the A-pillar
- The bracket can be used to align the instrument panel. Refer to INSTRUMENT PANEL, ALIGNING IN VEHICLE
- Removing and Installing. Refer to FRONT PASSENGER SIDE MOUNTING BRACKET, REMOVING AND INSTALLING .
- Nut
- 20 Nm
- Quantity: 3
- Instrument panel central tube nuts to bracket. Refer to -Item ) OVERVIEW - INSTRUMENT PANEL CROSSMEMBER - List Item: Bracket with Eccentric and -Item ) OVERVIEW - INSTRUMENT PANEL CROSSMEMBER - List Item: Bracket with Eccentric.
- Bolt
- 20 Nm
- Quantity: 4
- Instrument panel central tube bolt to center tunnel
- Threaded Plate
- Threaded plate for center tunnel bolts
- Center Channel Bracket
- Bolt
- 6 Nm
- Bracket with Eccentric
- Instrument panel central tube bracket on the driver side; bolted to the A-pillar
- The bracket can be used to align the instrument panel. Refer to INSTRUMENT PANEL, ALIGNING IN VEHICLE
- Removing and Installing. Refer to DRIVER SIDE MOUNTING BRACKET, REMOVING AND INSTALLING .
- Bolt
- 20 Nm
- Located inside the plenum chamber on the left side
- Adjuster
- Brace
