Left/Right Front Fog Lamp Bulb -L22- / -L23-

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The removal and installation are similar for the Right Front Fog Lamp Bulb -L23- and the Left Front Fog Lamp Bulb -L22-. The following illustrations depict removal and installation of the Left Front Fog Lamp Bulb -L22-.

Removal

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Remove fog lamp, refer to FOG LAMPS .

-- Turn the bulb socket -1- in the direction of the -arrow- and remove it.

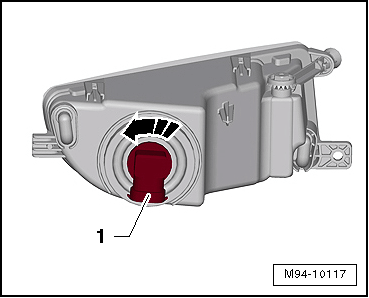

Fig 1: Identifying Bulb Socket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The bulb is permanently attached to the bulb socket and cannot be replaced separately, always check with the Parts Department for service replacement parts.

Bulb: H8 12 V/55 W

Installation

Install in reverse order of removal. Note the following:

CAUTION:

Do not touch the glass of the bulb during installation. Fingers will leave traces of grease on the glass which, when the light is switched on, will evaporate and cloud the glass.

-- Check and adjust the fog lamp adjustment, refer to MAINTENANCE PROCEDURES (CONVERTIBLE) .
