Fog Lamps

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The following illustrations depict removal and installation of left fog lamp.

Removal

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Remove the cap -1-.

Fig 1: Identifying Cap

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

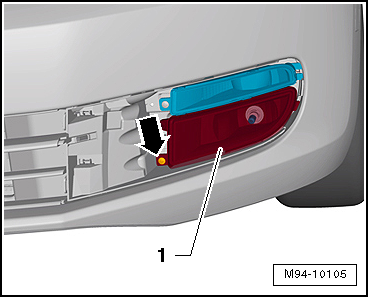

-- Remove the bolts -arrow-.

Fig 2: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

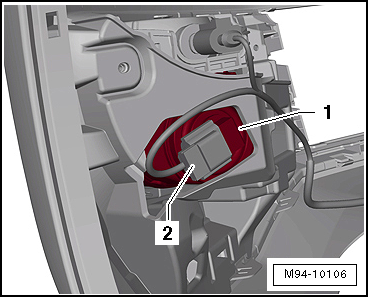

-- Release and disconnect the connector -2- from the fog lamp -1-.

Fig 3: Identifying Fog Lamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the fog lamp.

Installation

Install in reverse order of removal. Note the following:

-- Check and adjust the fog lamp adjustment, refer to FOG LAMP, ADJUSTING .

Tightening Specifications

Refer to FOG LAMP OVERVIEW .
