Front Turn Signal Housing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Illustrations depict removal and installation of the left turn signal.

Removal

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Remove the cap -1-.

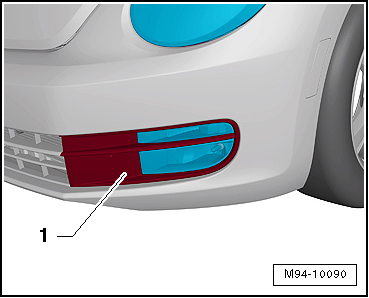

Fig 1: Identifying Cap

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -arrow- on the turn signal housing -1-.

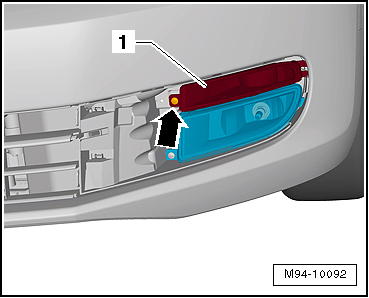

Fig 2: Identifying Turn Signal Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the turn signal housing -1- toward the front.

-- Disconnect the connector from the turn signal housing.

Installation

Install in reverse order of removal. Note the following:

Tightening Specifications

Refer to FRONT TURN SIGNAL LAMP OVERVIEW .
