Front Turn Signal Lamp Overview

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

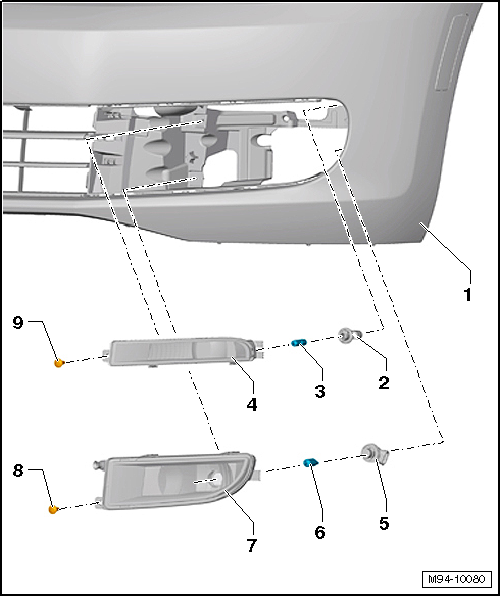

Fig 1: Identifying Front Turn Signal Lamp Components Overview
GWWM94-10080Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Front Bumper Cover
  2. Turn Signal Bulb Socket
  3. Left Front Turn Signal Bulb -M5- /Right Front Turn Signal Bulb -M7-
  4. Turn Signal Housing
  5. Fog Lamp Bulb Socket
  6. Left Front Fog Lamp Bulb -L22- /Right Front Fog Lamp Bulb -L23-
    • Bulb: H8 12 V/51 W
  7. Fog Lamp Housing
  8. Bolt
    • 2 Nm
  9. Bolt
    • 2 Nm
