Oil Supply Line To Turbocharger: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER .

-- Remove the air filter housing with the mass air flow sensor and connecting pipe AIR FILTER HOUSING .

-- Remove the warm air collector plate TURBOCHARGER OVERVIEW => List Item:Warm Air Collector Plate .

-- Remove connecting pipe between the exhaust manifold and intake manifold TURBOCHARGER OVERVIEW => List Item:Connecting Pipe .

-- Remove the charge air pipe CHARGE AIR SYSTEM OVERVIEW => List Item:Charge Air Pipe .

-- Remove the rear clamp -arrow- from the cylinder head.

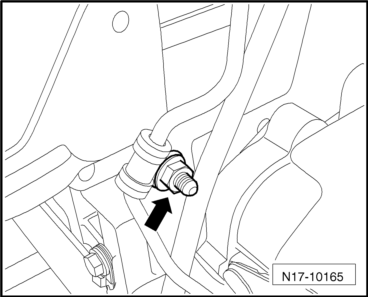

Fig 1: Identifying Cylinder Head Clamp Nut

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the union nuts on the oil filter bracket and turbocharger using Socket T40055.

-- Remove the oil supply line clamp -arrow- from the cylinder head.

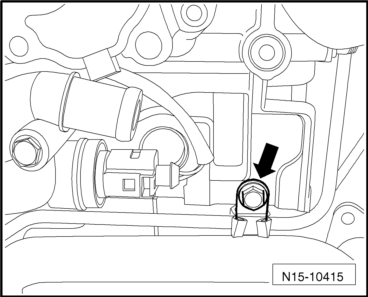

Fig 2: Identifying Oil Supply Line Clamp Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the oil supply line.
