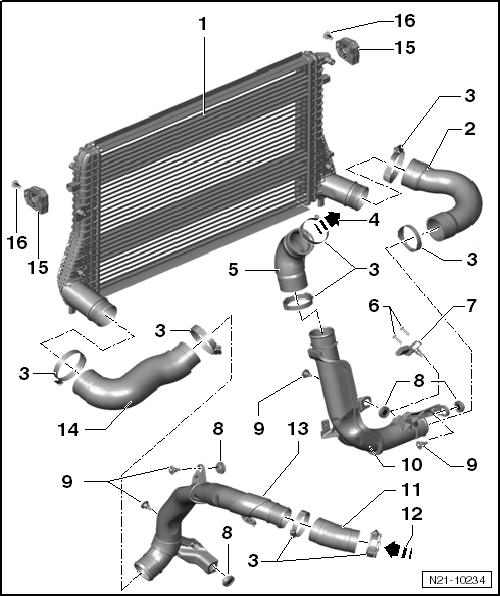

Charge Air System Overview
WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
All hose connections for charge air system are secured by spring-type clamps or by connector couplings.
Charge air system must be properly sealed.
Charge Air System, Checking for Leaks. Refer to CHARGE AIR SYSTEM, CHECKING FOR LEAKS .
- Charge Air Cooler
- Removing and installing. Refer to CHARGE AIR COOLER .
- Connecting Hose
- Cold side, bottom
- Screw-Type Clamp
- 8 Nm
- To the Throttle Valve Control Module -J338-
- Connecting Hose
- Cold side, top
- Bolt
- 5 Nm
- Charge Air Pressure Sensor -G31- with Intake Air Temperature (IAT) Sensor -G42-
- Rubber Grommet
- Replace if damaged
- Bolt
- 10 Nm
- Charge air pipe
- Cold side
- Connecting Hose
- Hot side, top
- From the Turbocharger
- Charge Air Pipe
- Hot side
- Connecting Hose
- Hot side, bottom
- Bearings
- For the charge air cooler
- Bolt
- 10 Nm
