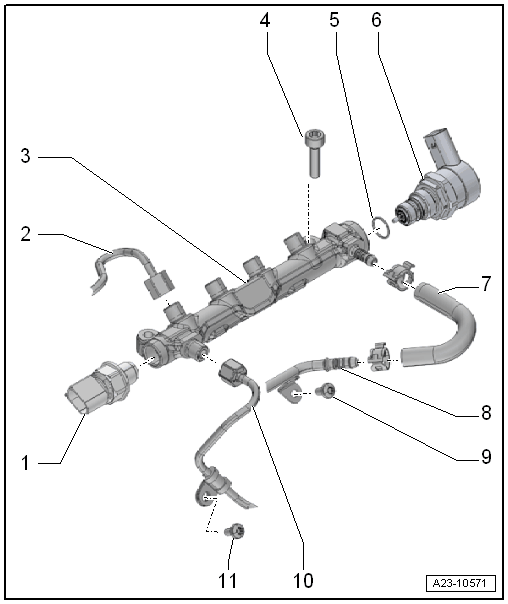

Overview - High Pressure Reservoir (Rail)
WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Fuel Pressure Sensor -G247-
- 100 Nm
- Removing and installing, refer to FUEL PRESSURE SENSOR -G247- .
- Reuse is possible, refer to INSTALLING
- High Pressure Line
- 28 Nm
- between the high pressure reservoir and the fuel injectors
- Read and follow all instructions on installing the high pressure lines, refer to HIGH PRESSURE LINE, INSTALLING .
- High Pressure Reservoir (Rail)
- Removing and installing, refer to HIGH PRESSURE RESERVOIR (RAIL) .
- Bolt
- 20 Nm
- O-Ring
- Replace after removing
- Fuel Pressure Regulator Valve -N276-
- 80 Nm
- Removing and installing, refer to FUEL PRESSURE REGULATOR VALVE -N276- .
- Always replace if removed
- After replacing adapt the adaptation values in "Guided Functions" Vehicle Diagnostic Tester.
- Fuel Return Hose
- Fuel Return Line
- Bolt
- 8 Nm
- High Pressure Line
- 28 Nm
- Between the high pressure pump and the high pressure reservoir
- Read and follow all instructions on installing the high pressure lines, refer to HIGH PRESSURE LINE, INSTALLING .
- Bolt
- 8 Nm
