Generator Overview
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

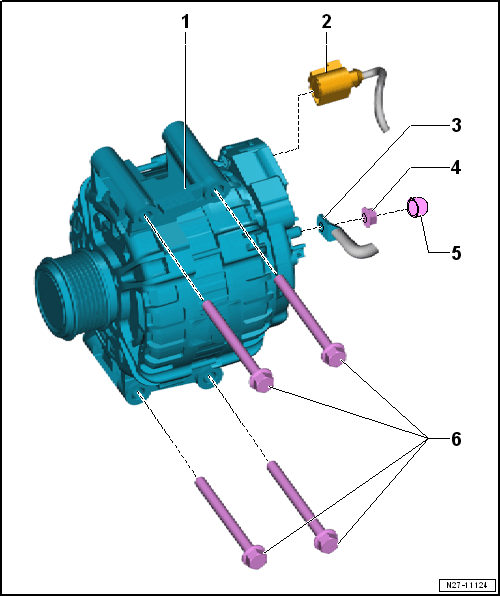

- Generator -C-
- Removing and installing, refer to Generator -C- .
- Checking, refer to GENERATOR, CHECKING .
- Voltage Regulator -C1-, Removing and Installing
- Ribbed belt pulley, removing and installing, refer to RIBBED BELT PULLEY .
- Connector
- Terminal 30/B+
- B+ wire connection
- Nut
- 20 Nm
- Cap
- Screw
- 20 Nm
- Quantity: 4
- Bolt
- 20 Nm
- Quantity: 4
- Bolt
- 2 Nm
- Quantity: 2
- Washer
- Screw
- 5 Nm
- Nut
- 3 Nm
- Cable Holder Nut
- Nut
- Nut for the B+ wire
- 20 Nm
- Cap
- Bolt
- 2 Nm
- Voltage Regulator -C1-
- Removal and installation, refer to Voltage Regulator -C1-, BOSCH
- Generator -C-
- Removal and installation, refer to Generator -C-
- Checking, refer to GENERATOR, CHECKING
- Removal and installation of the ribbed belt pulley, refer to RIBBED BELT PULLEY
- Ribbed Belt
- Checking, refer to RIBBED BELT, CHECKING
- Removal and Installation, refer to RIBBED BELT .
- Routing, refer to CYLINDER BLOCK, BELT PULLEY SIDE or RIBBED BELT .
No Illustration
- Ribbed belt pulley without freewheel: 65 Nm
- Free-wheeling belt pulley: 80 Nm
- Bolt
- 25 Nm
- Quantity: 2
- Ribbed Belt
- Checking, refer to RIBBED BELT, CHECKING
- Removal and Installation, refer to RIBBED BELT
- Routing, refer to RIBBED BELT DRIVE OVERVIEW
- Ribbed Belt Pulley
- Without free wheel: 65 Nm
- With free wheel: 80 Nm
- Removal and installation, refer to RIBBED BELT PULLEY
- Generator -C-
- Removal and installation, refer to Generator -C-
- Checking, refer to GENERATOR, CHECKING
- Voltage Regulator -C1-
- Removal and installation, refer to Voltage Regulator -C1-, BOSCH
- Bolt with Washer and Threaded Piece
- 4 Nm
- Cap
- Bolt
- 2 Nm
- Quantity: 2
- Cap for the Carbon Brushes
No Illustration
- B+ wire nut to rear side of Generator: 20 Nm
- Wire clamp nut to the back of the Generator: 3 Nm
- Bolt
- 20 Nm
- Quantity: 2
- Ribbed Belt
- Checking, refer to RIBBED BELT, CHECKING
- Removal and Installation, refer to RIBBED BELT .
- Routing, refer to RIBBED BELT DRIVE OVERVIEW .
- Ribbed Belt Pulley
- Without free wheel: 65 Nm
- With free wheel: 80 Nm
- Removal and installation, refer to RIBBED BELT PULLEY
- Generator -C-
- Removal and installation, refer to Generator -C-
- Checking, refer to GENERATOR, CHECKING
- Voltage Regulator -C1-
- Removal and installation, refer to Voltage Regulator -C1-, BOSCH
- Bolt with Washer and Threaded Piece
- 4 Nm
- Cap
- Bolts
- 2 Nm
- Quantity: 2
- Cap for the Carbon Brushes
No Illustration
- B+ wire nut to rear side of Generator: 20 Nm
- Wire holder nut to the back of the Generator: 3 Nm
