Ribbed Belt

WARNING: This page is about a different car, the 2014 Volkswagen Beetle and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Locking Pin T10060A

Removing Ribbed Belt

-- Remove the noise insulation. Refer to NOISE INSULATION OVERVIEW .

-- Remove right front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER .

Remove A/C Compressor Ribbed Belt

CAUTION:

Risk of damage due to reversed running direction on a used ribbed belt.

Before removing ribbed belt, marking running direction with chalk or felt-tip pen for reinstallation later.

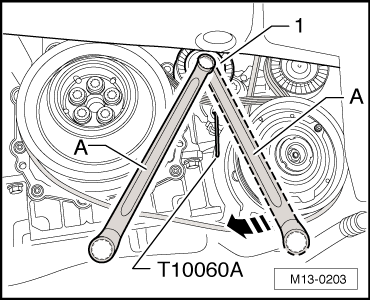

-- Swivel tensioning element -1- as illustrated using a 15 mm open end wrench -A- in -direction of arrow- and secure using Locking Pin T10060A.

Fig 1: Identifying Rotation Of Tensioner Secured In Position With Locking Pin T10060A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove ribbed belt for A/C compressor.

Removing the ribbed belt for the generator, power steering pump and coolant pump.

CAUTION:

Risk of damage due to reversed running direction on a used ribbed belt.

Before removing ribbed belt, marking running direction with chalk or felt-tip pen for reinstallation later.

-- Release the tension on the tensioner -1- for the A/C compressor ribbed belt (Locking Pin T10060A).

-- Insert the Locking Pin T10060A into the tensioner -2-.

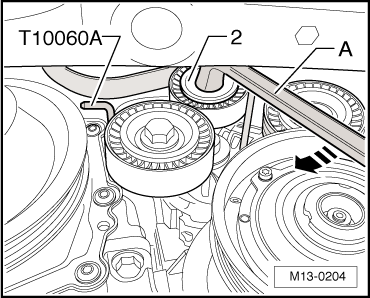

Fig 2: Identifying Locking Pin Inserted T10060A Into Tensioning Element

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Swivel the tensioner -2- in -direction of arrow- using a 15 mm wrench -A- and then lock it into place with Locking Pin T10060A.

-- Remove the generator ribbed belt, power steering pump and coolant pump.

Installing Ribbed Belt

Install in reverse order of removal. Note the following:

-- Route the ribbed belt for the generator, power steering pump and coolant pump over the belt pulley, and then over the idler roller -4-.

Fig 3: Ribbed Belt Routing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the compressor ribbed belt pulley before tensioning the ribbed belt and make sure the ribbed belt is seated correctly on the belt pulley.

-- Lock the tensioner with the Locking Pin T10060A before installing the A/C compressor ribbed belt.

NOTE:

Make sure the belt rotation direction is correct and that the belt sits correctly on the pulley.

-- Start the engine and check the belt running.
