CAMSHAFT SEAL VEHICLES WITH "Old" SEAL: Installing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The sealing lip of the sealing ring may not be additionally oiled or greased.

-- Remove oil residue on camshaft pins using a clean cloth.

-- Mount the guide sleeve from the Seal Driver 10 - 203 on the camshaft as shown.

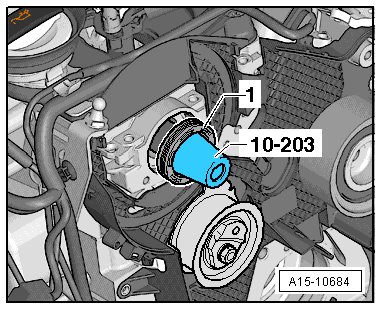

Fig 1: Identifying Seal Pressed In To Stop Using Seal Driver 10-203

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully slide the shaft seal -1- over the guide sleeve and onto the camshaft.

-- Install the seal all the way using oil seal driver 10-203 and bolt M 12 X 1.5 X 75.

Fig 2: Identifying Oil Seal Driver 10-203 Thrust Piece And Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the camshaft sprocket and the hub. Refer to Installing .

-- Install toothed belt and adjust valve timing. Refer to Installing .
