Toothed Belt: Installing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The toothed belt may be adjusted only when the engine is cold because the position of the pointer on the tensioner will change due to the temperature of the engine.

The engine bracket must be removed in order to replace the tensioning roller. Refer to ENGINE BRACKET .

Replace the bolts for the camshaft- and high pressure pump gear.

There are two versions of tension roller installed. It is possible to exchange them for one another. When adjusting, first check which tension roller is installed.

NOTE: Turn the camshaft hub with the Counterhold Tool T10172 and the Adapters T10172/4 until they can be secured in place. Use at least one bolt -1- tightened by hand to do that.

-- Lock the camshaft hub with the Locking Pin 3359. To do this, push the rig pin through the empty outer slot and into the cylinder head bore.

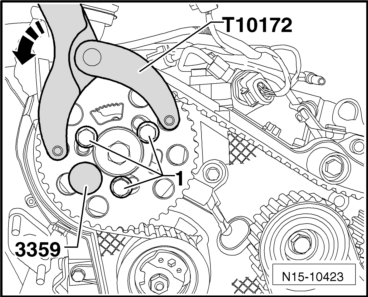

Fig 1: Identifying Camshaft Hub And Counterhold Tool T10172
GWWN15-10423Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the bolts, which were tightened hand-tight.

NOTE: Rotate the high pressure pump hub with a screwdriver at the bolt heads until it can be secured.

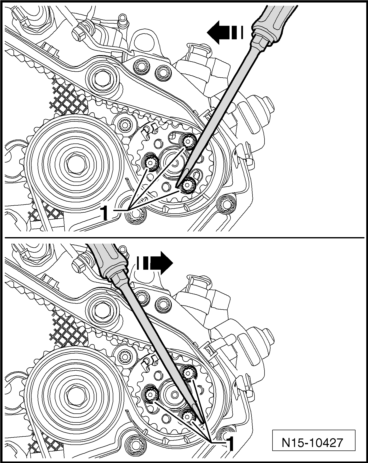

Fig 2: Camshaft Hub Rotated With Screwdriver
GWWN15-10427Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the high pressure pump hub with the Locking Pin 3359. To do that, slide the rig pin into the hole outside the toothed belt sprocket.

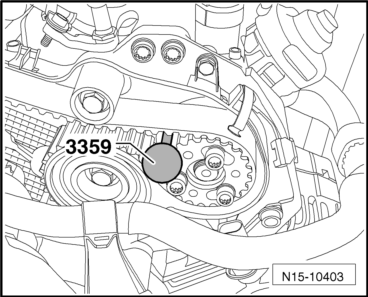

Fig 3: Identifying Diesel Injection Pump Locking Pin 3359
GWWN15-10403Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Rotate the camshaft sprocket and high pressure toothed belt sprocket clockwise in their slots as far as the stop.

-- Install the toothed belt on the crankshaft sprocket, the tensioning roller, the camshaft sprocket, coolant pump toothed belt sprocket and the high pressure toothed belt sprocket.

-- Lay the toothed belt on the tensioning roller last.

-- Loosen the tensioning roller nut and remove the Locking Tool T10265.

NOTE: Make sure the tensioning roller is properly positioned in the rear toothed belt guard -arrow-.

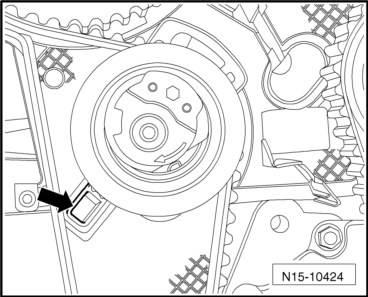

Fig 4: Identifying Tensioner Positioned In Rear Toothed Belt Guard
GWWN15-10424Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully turn the tensioning roller eccentric pulley with the Long Reach Special Wrench T10264 clockwise. The pointer -2- must be somewhat above the center of the gap in the base plate. This will be corrected when pretensioning.

Fig 5: Identifying Long Reach T10264 And Nut
GWWN15-10334Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Make sure that the nut -1- does not turn with it.

-- Hold the tensioning roller in this position and tighten the tensioning roller nut.

-- Attach the Counterhold Tool T10172 as shown. Push the Counterhold Tool T10172 in the direction of arrow and hold the camshaft sprocket pretensioned.

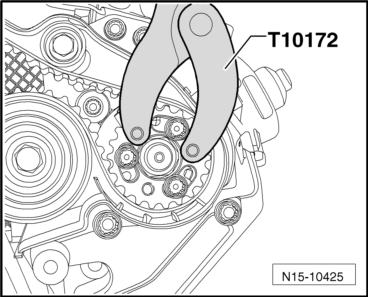

Fig 6: Identifying Camshaft Hub And Counterhold Tool T10172
GWWN15-10423Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts for the camshaft sprocket and for the high pressure pump belt sprocket hand-tight.

-- Tighten bolts to 20 Nm.

-- Remove the Locking Pin 3359 and the Crankshaft Stop T10050.

-- Turn the crankshaft two turns further in direction of engine rotation and just up to "TDC" for cylinder 1.

-- Insert the Crankshaft Stop T10050 back into the crankshaft toothed belt gear.

-- Turn the crankshaft in direction of engine rotation, until the pins on the crankshaft stop -arrow- fit into the sealing flange.

Fig 7: Identifying Crankshaft Stop T10050
GWWN15-0446Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE: In the following check, only the camshaft and crankshaft are secured. The peg position for the high pressure pump hub is very difficult to find again. A small deviation -arrow- does not affect engine operation.

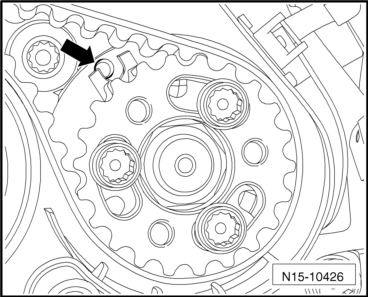

Fig 8: Identifying Small Deviation On High Pressure Fuel Pump Hub
GWWN15-10426Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Check if:

If the camshaft hub cannot be secured:

-- Pull the Crankshaft Stop T10050 toward the back until the pin opens the hole.

-- Turn the crankshaft opposite the direction of engine rotation just past TDC.

-- Slowing turn the crankshaft in the direction of engine rotation until the camshaft hub is secured.

-- After securing, loosen the bolts on the camshaft toothed belt sprocket.

If the Crankshaft Stop T10050 tab is to the left of the hole:

-- Turn the crankshaft in direction of engine rotation, until the tip on the crankshaft stop fits into the sealing flange.

Fig 9: Identifying Crankshaft Stop T10050
GWWN15-0446Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts for the camshaft toothed belt gear hand-tight.

-- Then tighten them to 20 Nm.

If the Crankshaft Stop T10050 tab is to the right of the hole:

-- Turn the crankshaft just a little opposite the direction of engine rotation.

-- Turn the crankshaft in direction of engine rotation, until the tip on the crankshaft stop fits into the sealing flange.

-- Tighten the bolts for the camshaft toothed belt gear hand-tight.

-- Then tighten them to 20 Nm.

Continuation

-- Remove the Locking Pin 3359 and the Crankshaft Stop T10050.

-- Turn the crankshaft two turns further in direction of engine rotation and just up to "TDC" for cylinder 1.

-- Check again.

-- Now it is possible to install the camshaft hub. Tighten the bolts as follows:

-- Install the lower and center toothed belt guard.

-- Install the vibration damper/belt pulley.

-- Install the ribbed belt. Refer to RIBBED BELT WITH TENSIONER AND A/C COMPRESSOR .

-- Install the upper toothed belt guard.

Assemble in reverse order of disassembly. Note the following:

-- Install the right front wheel housing liner. Refer to Removal and Installation .

-- Install the noise insulation. Refer to Description and Operation .
