Lower Toothed Belt Guard: Installing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

NOTE: If a new toothed belt guard is installed, the guide tabs -arrow - must be disconnected before installing.

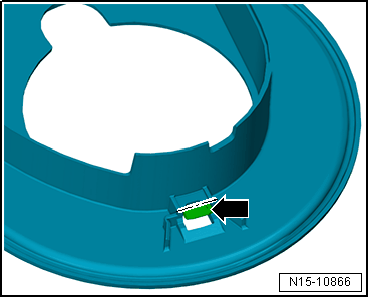

Fig 1: Toothed Belt Guard Tab

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the toothed belt guard, pay attention to the alignment pins -arrow- while doing so.

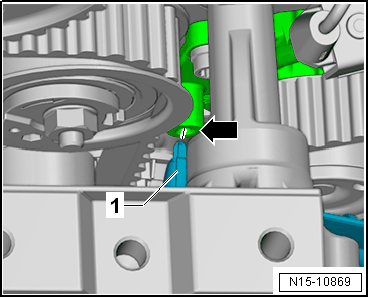

Fig 2: Locating Alignment Pins

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the toothed belt guard.

Tightening specification, refer to OVERVIEW - TOOTHED BELT .

-- Install the vibration damper, refer to VIBRATION DAMPER .
