Control Valve From The Camshaft Adjuster: Removing

-- Remove the noise insulation, refer to NOISE INSULATION OVERVIEW .

-- Remove the upper toothed belt guard, refer to Removing .

-- Turn the crankshaft at the toothed belt gear bolt until the camshaft toothed belt gear is at "Top Dead Center (TDC)".

-- Secure the camshaft hub with the Diesel Injection Pump Locking Pin 3359 by inserting the pin in the fork on the drive plate -2- and in the hole behind it -1- in the cylinder head.

Fig 1: Identifying Diesel Injection Pump Locking Pin

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect cylinder 1 fuel injector connector -2-.

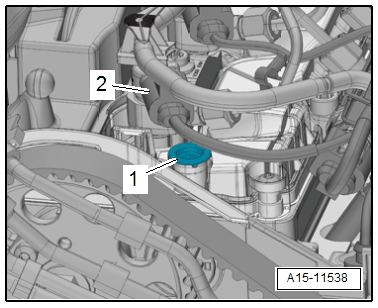

Fig 2: Identifying Sealing Plug

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and remove the sealing plug -1- from the cylinder head cover by turning it to the left.

-- Secure the intake camshaft with the Locking Pin T10492, while doing so pay attention to the following:

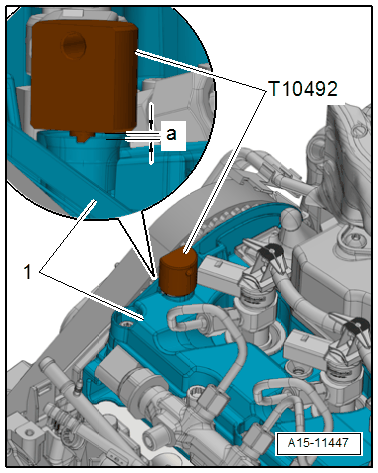

Fig 3: Identifying Cylinder Head Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Cylinder head cover -1- installed:

• The distance -a- is approximately 1 mm.

Cylinder head cover removed:

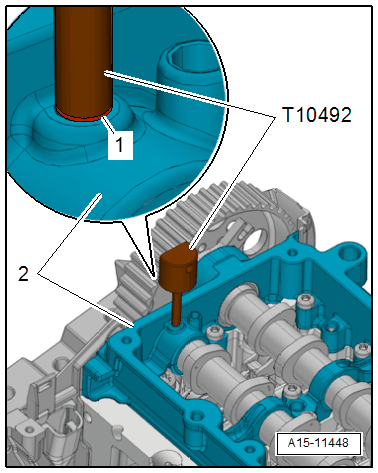

Fig 4: Identifying Groove And Camshaft Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• The groove -1- on the Locking Pin T10492 must be flush with the camshaft housing -2-.

-- Remove the air filter housing, refer to AIR FILTER HOUSING .

-- Disconnect the connector -2-.

-- Remove the bolts -1- and the Camshaft Adjustment Valve 1 - N205-.

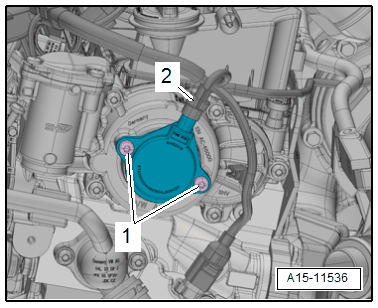

Fig 5: Identifying Camshaft Adjustment Valve 1 And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the control valve -2-.

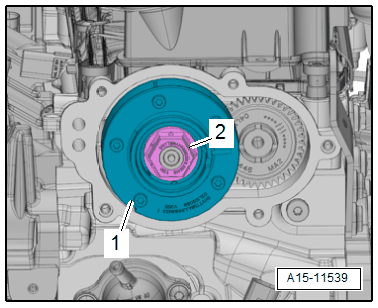

Fig 6: Identifying Control Valve And Camshaft Adjuster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
