Camshaft Adjuster: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the upper toothed belt guard, refer to Removing .

-- Remove the noise insulation -1-, refer to NOISE INSULATION OVERVIEW .

Fig 1: Identifying Diesel Injection Pump Locking Pin

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION: Components could be destroyed by the toothed belt jump off.

Only rotate the crankshaft in the direction of engine rotation.

-- Turn the crankshaft at the toothed belt gear bolt until the camshaft toothed belt gear is at "TDC".

Remove the camshaft as follows:

-- Disconnect cylinder 1 fuel injector connector -2-.

Fig 2: Identifying Sealing Plug

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and remove the sealing plug -1- from the cylinder head cover by turning it to the left.

-- Secure the intake camshaft with the Locking Pin T10492, while doing so pay attention to the following:

Fig 3: Identifying Cylinder Head Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Cylinder head cover -1- installed:

The distance -a- is approximately 1 mm.

Cylinder head cover removed:

Fig 4: Identifying Groove And Camshaft Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The groove -1- on the Locking Pin T10492 must be flush with the camshaft housing -2-.

-- Remove the air filter housing, refer to AIR FILTER HOUSING .

-- Disconnect the connectors -3- and -4-. Remove the clamp from the housing.

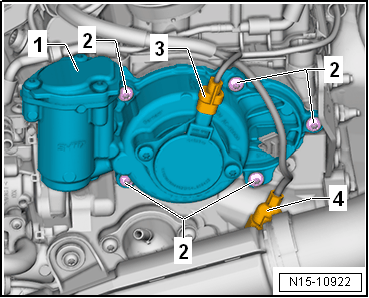

Fig 5: Identifying Housing And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -2- and the housing -1-.

CAUTION: Before removing the control valve check that the small piston in the center of the control valve for ease of movement. Push with a finger on the piston and check if it can be pushed in and drives back to the end position. In the pistons are caught the control valve must be replaced. Otherwise there is the threat of engine damage.

-- Remove the control valve -2-, and remove the camshaft adjuster -1-.

Fig 6: Identifying Control Valve And Camshaft Adjuster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
