Overview - VALVETRAIN
WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Risk of damaging valves and piston heads after working on valve train.
- The motor must not be started for about 30 minutes after installing camshafts because the hydraulic equalization elements must seat themselves.
- To ensure valves do not strike pistons when starting, carefully rotate the crankshaft at least 2 turns.

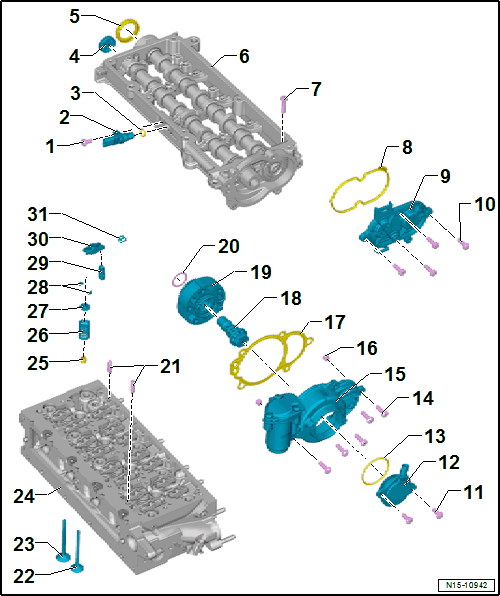

- Bolt
- Tightening specification, refer to OVERVIEW - GLOW PLUG SYSTEM
- Camshaft Position Sensor -G40-
- Overview, refer to OVERVIEW - GLOW PLUG SYSTEM .
- O-Ring
- Replace after removing
- Cap
- Replace after removing
- Removing: With the camshaft housing installed, pierce through one side of the cover with an awl and pry it out.
- Installing: Drive in without sealant until it is flush using a suitable thrust piece, such as the Torque Adapter 3390
- Camshaft Seal
- Replace after removing, refer to CAMSHAFT SEAL .
- Camshaft Housing
- With integrated camshaft
- Removing and installing, refer to CAMSHAFT HOUSING .
- Bolt
- Seal
- Replace after removing
- Cover
- Bolt
- 8 Nm
- Bolt
- 8 Nm
- Camshaft Adjustment Valve 1 -N205-
- Removing and installing, refer to Camshaft Adjustment Valve 1 -N205- .
- Seal
- Replace after removing
- Bolt
- Tightening specification and sequence, refer to Fig 3.
- Housing
- for camshaft adjuster
- Alignment Sleeve
- Seal
- Replace after removing
- Control Valve
- 50 Nm
- Removing and installing, refer to CONTROL VALVE FROM THE CAMSHAFT ADJUSTER .
- Camshaft AdjusterCAUTION: Between the camshaft adjuster and camshaft stub there is a friction disc -item 20- installed for connection security. Before installing it must be checked that this friction disc is in the camshaft position. Otherwise the camshaft adjuster can become loose during engine running and damage the engine.
- Removing and installing, refer to CAMSHAFT ADJUSTER .
- Friction Disc
- Before installing check that the camshaft adjuster is present
- Alignment Pin
- For the camshaft housing
- Exhaust Valve
- Do not rework, only grinding is permitted
- Mark the installed position for installation later
- Checking, refer to VALVES, CHECKING .
- Valve dimensions, refer to VALVE DIMENSIONS .
- Valve guides, checking, refer to VALVE GUIDES, CHECKING .
- Intake Valve
- Do not rework, only grinding is permitted
- Mark the installed position for installation later
- Checking, refer to VALVES, CHECKING .
- Valve dimensions, refer to VALVE DIMENSIONS .
- Valve guides, checking, refer to VALVE GUIDES, CHECKING .
- Cylinder Head
- The valve seat may not reworked due to a close tolerances.
- Valve Stem Seal
- Replace after removing, refer to VALVE STEM SEALS .
- Valve Spring
- Valve Spring Retainer
- Valve Keepers
- Hydraulic Adjusting Element
- Checking, refer to HYDRAULIC ADJUSTING ELEMENTS, CHECKING .
- Mark the installed position for installation later
- Lubricate the running surfaces before installing
- Roller Rocker Lever
- Removing and installing, refer to CAMSHAFT HOUSING .
- Mark the installed position for installation later
- Check roller for easy movement
- Lubricate the running surfaces before installing
- Clip
- For hydraulic adjuster

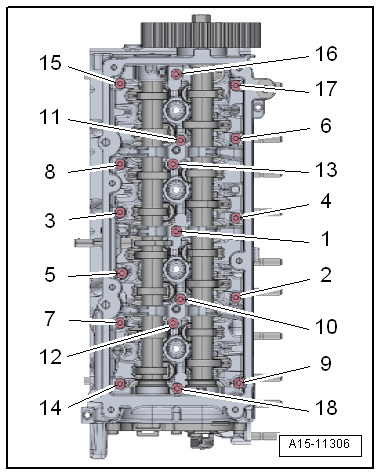

-- Tighten the bolts in steps in the sequence shown:
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1. | -1 through 18- | Install all the way in by hand.
|
| 2. | -1 through 18- | 8 Nm |
| 3. | -1 through 18- | Tighten an additional 90° |

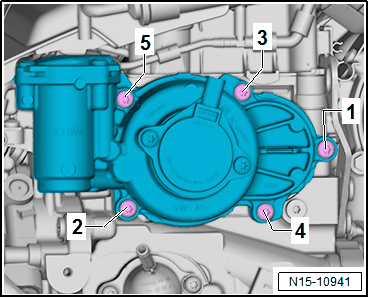

-- Tighten the bolts in steps in the sequence shown:
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1. | -1 through 5- | Install all the way in by hand. |
| 2. | -1 through 5- | 8 Nm |
