Overview - Valvetrain

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The cylinder head and the cylinder head cover must be replaced together.

Do not start the engine for approximately 30 minutes after installing the camshafts. The hydraulic equalization elements must seat themselves (otherwise the valves will crash into the pistons).

After working on the valvetrain and lifters, carefully rotate the crankshaft by hand at least two full revolutions before starting to be sure that valves do not strike the pistons.

After removing the camshaft, adjust the chain length, refer to CHAIN LENGTH, CHECKING .

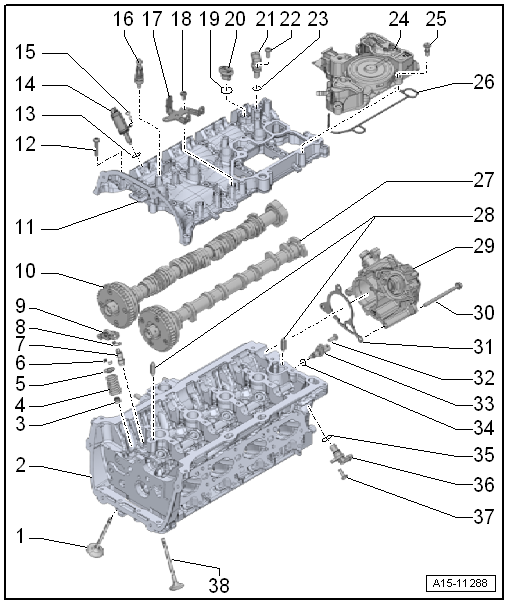

Fig 1: Identifying Valvetrain Overview
GWWA15-11288Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Intake Valve
  2. Cylinder Head
  3. Valve Stem Seal
  4. Valve Spring
  5. Valve Spring Retainer
  6. Valve Keepers
  7. Hydraulic Adjusting Element
    • Do not interchange
    • Lubricate contact surface
  8. Clip
    • For hydraulic adjuster
  9. Roller Rocker Lever
    • Removing and installing, refer to CAMSHAFT .
    • Mark the installed position for installation later
    • Check roller for easy movement
    • Lubricate the running surfaces before installing
  10. Exhaust Camshaft
    • Check radial clearance using Plastigage (roller rocker lever removed)
    • Radial clearance: 0.024 to 0.066 mm
    • Run-out: maximum 0.04 mm
    • Removing and installing, refer to CAMSHAFT .
  11. Cylinder Head Cover
    • With integrated camshaft bearings
    • Clean sealing surface, reworking is not permitted.
    • Remove old sealant residue.
  12. Bolt
    • Loosening, refer to Fig 2
    • Tightening specification and sequence, refer to Fig 3.
  13. O-Ring
    • Not installed
  14. Cam Adjustment Actuator
    • Not installed
  15. Bolt
    • Not installed
  16. Ball Pin
    • 9 Nm
    • For engine cover
  17. Bracket
    • For EVAP Canister Purge Regulator Valve 1 -N80-
  18. Bolt
    • 9 Nm
  19. O-Ring
    • Replace after removing
    • Coat with engine oil
  20. Plug
  21. Camshaft Position Sensor 3 -G300-
    • Not installed
  22. Bolt
    • Not installed
  23. O-Ring
    • Not installed
  24. Oil Separator
  25. Bolt
    • Tightening specification and sequence, refer to Fig 4.
  26. Seal
    • Replace after removing
  27. Intake Camshaft
    • Check radial clearance using Plastigage (roller rocker lever removed)
    • Radial clearance: 0.024 to 0.066 mm
    • maximum run out: 0.04 mm
    • Removing and installing, refer to CAMSHAFT .
  28. Alignment Pins
  29. Vacuum Pump
  30. Bolt
  31. Seal
    • Replace if damaged
  32. Bolt
  33. Engine Coolant Temperature Sensor -G62-
  34. O-Ring
    • Replace
    • Coat with coolant
  35. O-Ring
    • Replace after removing
    • Coat with engine oil
  36. Camshaft Position Sensor -G40-
  37. Bolt
  38. Exhaust Valve
Fig 2: Cylinder Head Cover Bolt Loosening Sequence
GWWA15-11493Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the cylinder head cover in the sequence -1- through -6-.

Fig 3: Cylinder Head Cover Bolt Tightening Sequence
GWWA15-11494Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace the bolts -1- through -6-.

Stage Bolts Tightening Specification/Additional Turn
1. -1- through -6- Install hand-tight in several stages
2. -1- through -6- Tighten with torque wrench to 8 Nm
3. -1- through -6- Tighten 90° further using a rigid wrench.
Fig 4: Oil Separator - Tightening Sequence
GWWA15-11247Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
