Brake Cylinder: Removing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the wheel.

-- Reset brake. Refer to REAR DRUM BRAKE, RESETTING .

-- Remove the brake drum. Refer to BRAKE DRUM .

-- Attach the bleeder bottle bleed hose -1- to the bleed valve on the brake cylinder and open the bleed valve.

Fig 1: Identifying Bleed Valve

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the Brake Pedal Actuator VAG 1869/2.

Fig 2: Identifying Brake Pedal Depressor VAG 1869/2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Close the bleed valve and remove the bleeder bottle.

-- Remove the brake line tube fitting -2- from the brake cylinder.

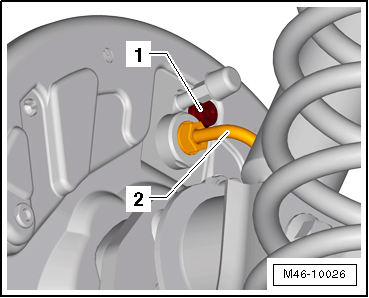

Fig 3: Identifying Brake Cylinder Bolt & Brake Line Tube Fitting

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Close the brake line and threaded hole immediately using Plugs 1H0 698 311 A.

-- Remove the brake cylinder bolt -1- from the brake carrier and remove the brake cylinder.

Cleaning:

WARNING:

Do not blow brake system using compressed air, the dust produced is harmful to health!

Use only appropriate solvents for cleaning brake system.
