Rear Drum Brake, Resetting

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the wheel.

-- Use a screwdriver to push the wedge. Refer to -item 4- in Figure upward through a threaded hole in the brake drum -2-.

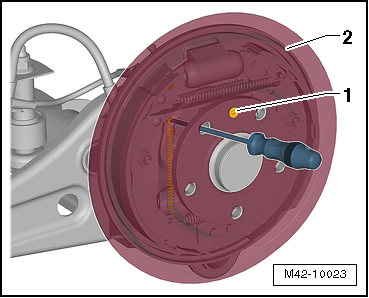

Fig 1: Identifying Rear Drum Brake

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The bolt -1- secures the brake drum -2- to the wheel hub.
